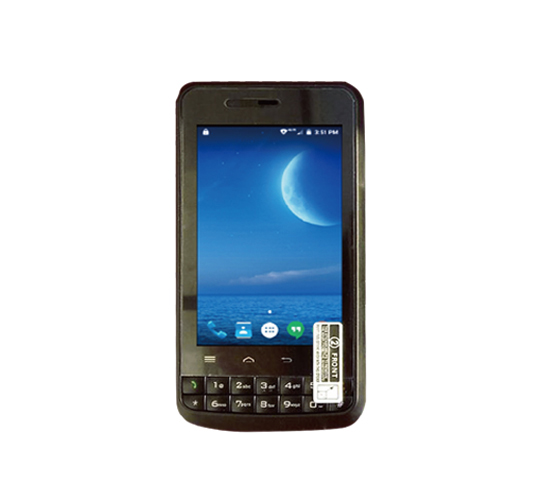

ARH01 handheld terminal UHF RFID reader, with high performance, designed to read and write to UHF tags, can also be configured with high performance data scanning ability,it is a leading breakthrough invention in the industry.
| Working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
| Weight | 654g |
| Display screen | 5.2 inch IPS |
| Sealing | IP65 |
| Battery capacity | Rechargeable lithium polymer battery 8000mAh |
| Communication Interface | USB 2.0 Type-C, OTG |
| Audio | Speaker, 2pcs microphone |
| Antenna | Linear polarization (1.8dBi), Circular polarization (4dBi) |
| Power | 1W (30dBm, +5dBm to +30dBm adjustable) |
| Length | 164.2mm |
| Width | 80mm |
| Height | 24.3mm |

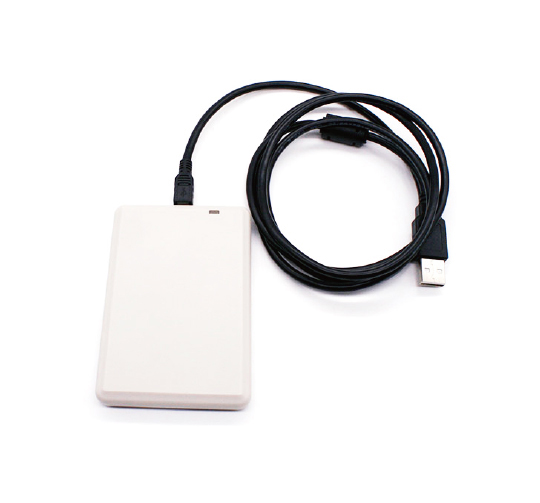

ARD01 is high performance UHF RFID Reader & Writer,
it supports fast read/write tag operation with high identification rate.exquisite appearance, easy to use.
| Working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
| Weight | 80g |
| Material | ABS plastic cover |
| Colour | White |
| Antenna | 2dBi |
| Power Disspation | 0.45W |
| Communication Interface | USB |
| Operating Temperature | -10℃ ~ +60℃ |
| Length | 105mm |
| Width | 70mm |
| Height | 11mm |

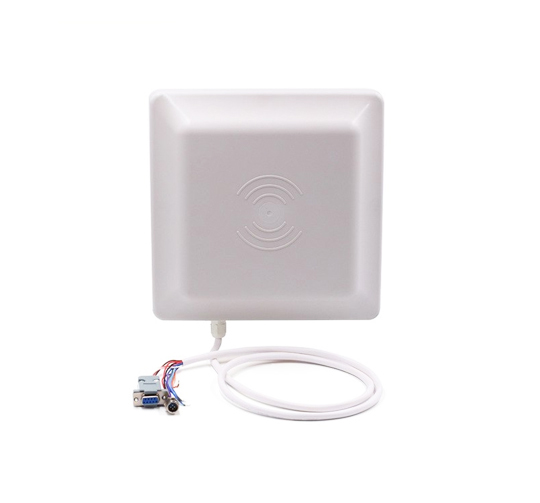

ARD02 is a high performance UHF RFID Reader integrated antenna, combined with a high-efficiency model processing algorithm, it achieves fast read and write processing of electronic tags while maintaining high read rate. Can be widely used in logistics, vehicle management, access control systems.
| Working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
| Weight | 900g |
| Operation Mode | FHSS or fixed frequency |
| RF Power | 30dBm(adjustable) |
| Antenna | 8dbi |
| Antenna Gain | Buit-in 8dbi antenna |
Power supply | single + 9V DC power supply |
| Length | 235mm |
| Width | 235mm |
| Height | 57mm |

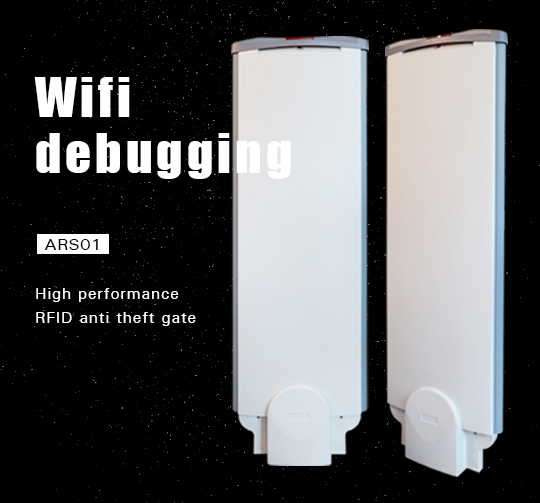

ARS01 is a high performance RFID anti theft gate, with high-speed reading tags ability, light and alarm double warning, supports offline application and muti gate antenna using.
| Working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
| RF output | 30dBm (adjustable) |
| Machine power consumption | 45W |
| Communication interface | RS-232 (DB9) RJ45 |
| Equipment Reliability(MTBF) | >10000 hours |
| Working temperature | -20℃～+60℃ |
| Ambient humidity | 5%～95%RH, no condensation |
| Length | 1550mm |
| Width | 400mm |
| Height | 40mm |
