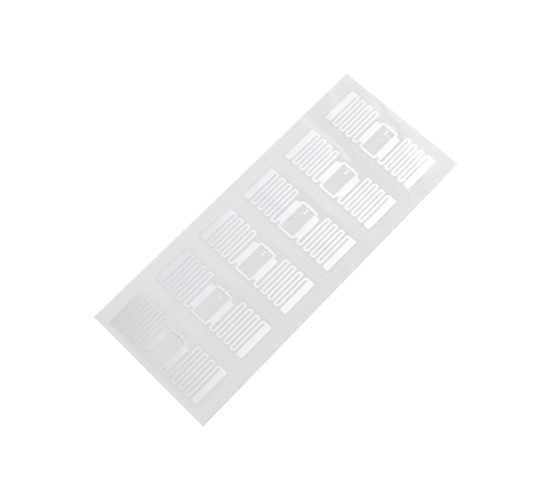

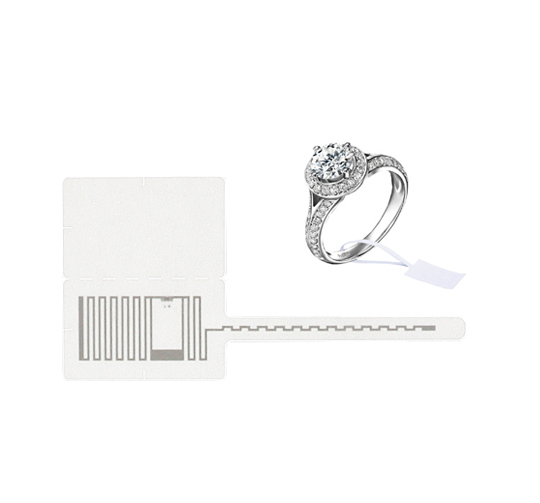

High quality long range reader distance UHF RFID jewellery label.
| Color | White |
| Material | Paper/adhesive sticker |
| RFID working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C) |
| Chip Type | Different chips are optional |
| Tag form factor | Dry Inlay/wet inlay/white wet inlay(label) |
| EPC storage space | 96-128bits |
| User storage space | 0-512bits |
| Length | 70mm |
| Width | 34mm |

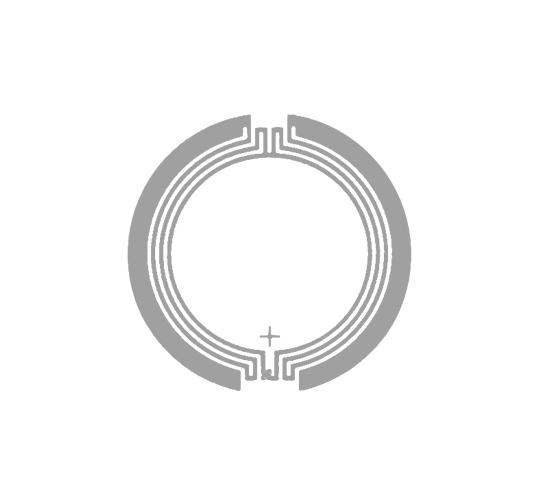

Round small rfid tag UHF adhesive wet inlay label sticker.
| Color | White |
| Material | Paper/adhesive sticker |
| RFID working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C) |
| Chip Type | Different chips are optional |
| Tag form factor | Dry Inlay/wet inlay/white wet inlay(label) |
| EPC storage space | 96-128bits |
| User storage space | 0-512bits |
| Antenna size | 25Dia'mm |
| Product size | 26.5Dia'mm |

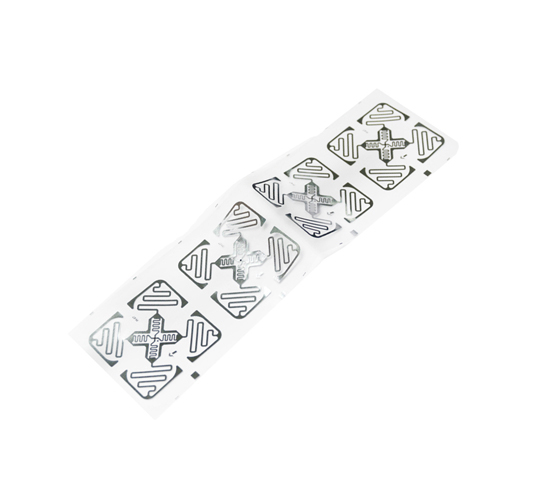

RFID label for logistics, inventory management or others.
| Color | White |
| Material | Paper/adhesive sticker |
| RFID working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
| Chip Type | Different chips are optional |
| Tag form factor | Dry Inlay/wet inlay/white wet inlay(label) |
| EPC storage space | 96-128bits |
| User storage space | 0-512bits |
| Length | 50mm |
| Width | 50mm |

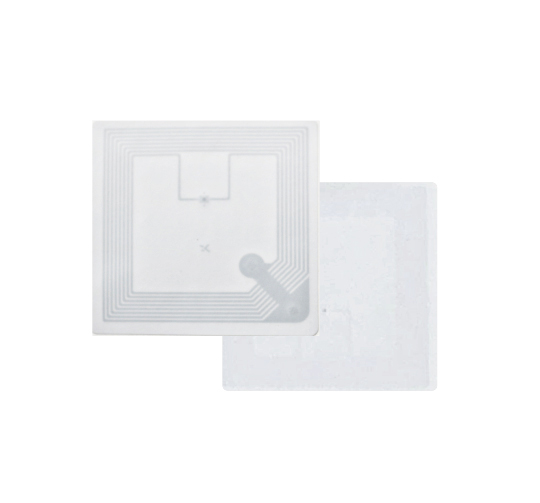

HF 13.56MHZ passive rfid sticker for library, inventory management.
| Color | White |
| Material | Paper/adhesive sticker |
| RFID working frequency | 13.56MHz |
| RFID Protocol | ISO 14443 |
| Chip Type | Different chips are optional |
| Tag form factor | Dry Inlay/wet inlay/white wet inlay(label) |
| EPC storage space | 96-128bits |
| User storage space | 0-512bits |
| Length | 50mm |
| Width | 50mm |
RFID UHF adhesive label for logistics warehouse cargo management.
| Color | White |
| Material | Paper/adhesive sticker |
| RFID working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
| Chip Type | Different chips are optional |
| Tag form factor | Dry Inlay/wet inlay/white wet inlay(label) |
| EPC storage space | 96-128bits |
| User storage space | 0-512bits |
| Length | 70mm |
| Width | 17mm |

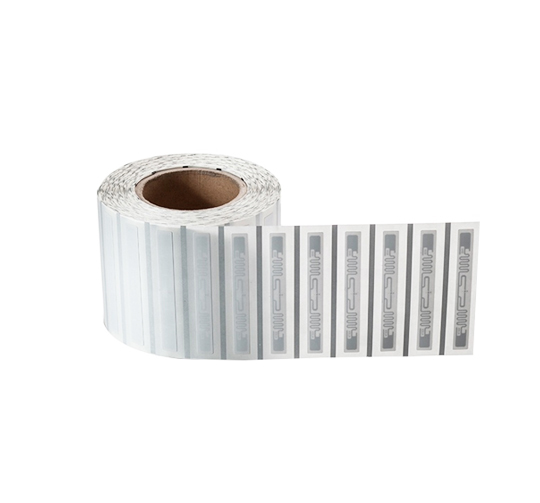

UHF RFID Alien 9640 smart label for supply chain, inventory, logistic management.
| Material | PET/Paper/adhesive sticker |
| RFID working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
| Chip Type | H3 or others |
| Tag form factor | Dry Inlay/wet inlay/white wet inlay(label) |
| EPC storage space | 96-128bits |
| User storage space | 0-512bits |
| Antenna size | 94.8*8.15mm |
| Product size | 98*10mm |

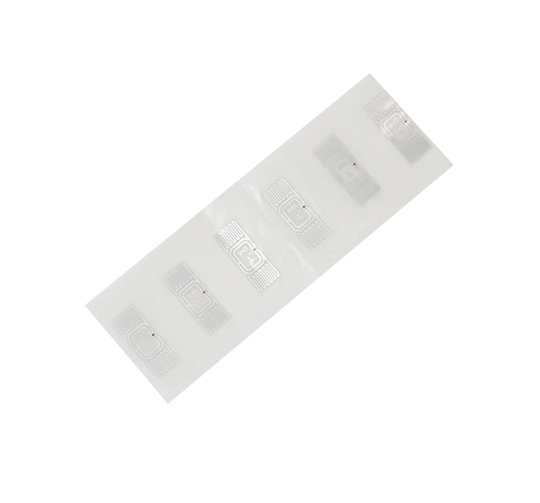

RFID UHF rfid sticker label for logistics, warehouse, garment management.
| Color | White |
| Material | Paper/adhesive sticker |
| RFID working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
| Chip Type | Monza 4E |
| Tag form factor | Dry Inlay/wet inlay/white wet inlay(label) |
| EPC storage space | 96-128bits |
| User storage space | 0-512bits |
| Length | 24mm |
| Width | 9mm |

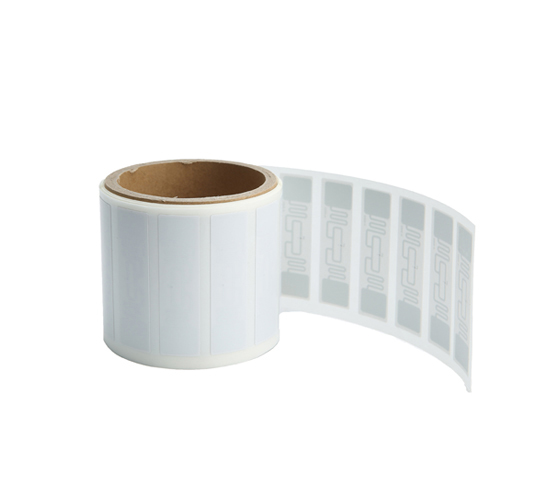

Long range passive RFID UHF smart sticker label for supply chain, apparel, inventory management.
| Material | PET/Paper/adhesive sticker |
| RFID working frequency | 860-960MHz |
| RFID Protocol | EPC C1G2 ( ISO18000-6C ) |
| Chip Type | R6/R6P or others |
| Tag form factor | Dry Inlay/wet inlay/white wet inlay(label) |
| EPC storage space | 96-128bits |
| User storage space | 0-512bits |
| Length | 44mm |
| Width | 15mm |
To read the information encoded on a tag, a two-way radio transmitter-receiver called an interrogator or reader emits a signal to the tag using an antenna.
The tag responds with the information written in its memory bank.
The interrogator will then transmit the read results to an RFID computer program.
